Used Diesel Generator Sets for Sale
  (Available in 50Hz. and 60Hz.)
Updated July,  2008
    (Engines Only)      (Generator Ends)     (Automatic Transfer Switches Click Here!)

---

COMPLETE POWER PLANT SOLUTIONS
Up To…18,000 kW Standby   16,425 kW Prime  60 Hz / 480V	Up To.18,000 kVAStandby 16,425 kVA Prime 50 Hz / 400V	*Also available with Bi-Fuel Technology (optional)

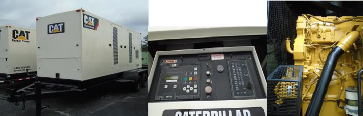

Caterpillar Diesel Power Plants – Using CAT 3516B XQ2000 Diesel Power Modules
Can provide Power Plants in various Sizes ranging from a Single XQ2000 Power Module to Multiple Unit configurations.   Caterpillar XQ2000 Diesel Power Module, 40’ sound attenuated (72dba) container, triple axle chassis. CAT 3516B engine, CAT SR4B generator, premium CAT EMCP floor standing control panel, auto start / stop, engine safeties, CAT auto paralleling switchgear with utility type devices, elec. circuit breaker, CAT electronic load share and speed control governor, 24V starter, 35Amp alternator, jacket water heater, 1250 gallon tank with fuel transfer. Optional electrical step-up transformers (pad mount type) and LV cables available.  This power plant(s) can also operate in continuous baseload configuration. The CAT Power Module is a completely self-contained electric power generating system, capable of producing power within hours of delivery to your site. Housed in ISO 40' high cube containers for weather protection, durability and sound attenuation, these modules can be mounted on an undercarriage (trailer chassis) for easy transport and flexible operation, or placed on a pad for more permanent installation. -Please contact us for a detailed written quotation. -            The Power Plant(s) can also be sold in smaller Sections (Example 2MW, 4MW, 6MW, 12MW, 24MW, etc.). Please inquire for Details and Pricing. We do have various Alternatives and Options available for 50Hz and 60Hz Applications.
18 MW Package	A Mix of Low Hour and 0 Hour (Rebuilt) Units	Model Year 2000 and 2001	Price Range per kW* US $ 245.00 –to- $ 408.00 (*based on 60Hz Standby)
CAT Dealer World Wide Warranty		Load Tested / Serviced / Cleaned





12,000 kW Continuous 50 Hz / 400V	14,000 kVA Continuous  50 Hz / 400V	*Transformers can be utilized to step up to any other Voltage. The power plant can also be modified to operate in 60Hz configuration (optional).
CATERPILLAR G3520C Natural Gas Power Plant
Six (6) Fully Reconditioned CATERPILLAR G3520C Natural Gas Generator Sets.  Each Genset is Rated 2000kw Continuous Duty, 400 Volt, 3 Phase, 50 hertz at 1500rpm, Factory designed Generator Set With V-20, 4-Stroke-Cycle Turbocharged-Aftercooled Natural Gas Engine. Manufactured according to ISO 9001. BASIC TECHNICAL DATA: Engine Speed: 1500 RPM Compression Ratio: 11.3:1 Fuel: Natural Gas Fuel System: Low Pressure  (0.50 – 5.0 PSIG) Min. Methane Number: 80 Rated Altitude: 821 ft
S/N: CWW00101	0 HOURS SINCE RECONDITIONING 6175 Hours Since NEW	Manufactured in July 2003 Delivered / First Time commissioned in January 2004   RECONDITIONED BY CAT IN 2008*	CAT G3520C Price Each: US$ 766,000. Each Six (6) Available
S/N: CWW00114	0 HOURS SINCE RECONDITIONING 7313 Hours Since NEW
S/N: CWW00115	0 HOURS SINCE RECONDITIONING 6350 Hours Since NEW
S/N: CWW00120	0 HOURS SINCE RECONDITIONING 6705 Hours Since NEW
S/N: CWW00122	0 HOURS SINCE RECONDITIONING 6208 Hours Since NEW
S/N: CWW00129	0 HOURS SINCE RECONDITIONING 6371 Hours Since NEW
CAT Dealer One Year World Wide Warranty		Load Tested / Serviced / Painted





7,050 kW  / 8,814 kVA Continuous 50 Hz / 6,600V

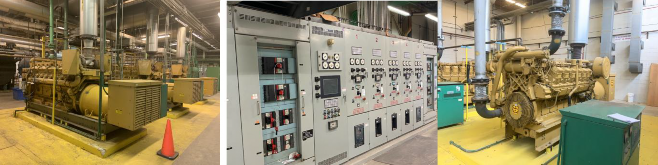

Caterpillar Diesel Power Plant consisting of three (3) CAT 3608 Diesel Generator Sets
Three (3) CATERPILLAR Model 3608TA Diesel Gensets. Rated 8,814 kVA (7,050 kW) Continuous Power (2,938 kVA / 2,350 kW each), 6600V, 3 Phase, 50 Hz, @ 1000 rpm. KATO Generator (Alternator) with 150% Overspeed Capability, Class H Generator Insulation with Tropicalization and Antiabraison. Major Components included: 3 x Duplex Radiator Cooling Towers + Aftercooler Rad., 3 x Exhaust Flex Connections and Mufflers, 3 x Diesel Fuel Tanks incl. Fuel Cooler, 1 x Compressor and Holding Tank for Air Start, 1 x Complete Switch Gear Lineup, 3 x Service Platforms and Stairs. Complete Top-End Overhaul done by  official CAT Dealer in 2001. Since then the Power Plant was only started for Warm-Up and general Maintenance. Can be modified to operate on HFO (optional)
Gen 3     6MC00407  1994 Gen 2     6MC00361  1993 Gen 1     6MC00358  1993	8459 since brand new 19016 since brand new 21502 since brand new	0 Hours since Top-End 0 Hours since Top-End	U.S. $ 1,798,000.
Warranty can be provided (optional)		Inspected / Tested / AS IS / WHERE IS









2640kW / 3300 kVA 50 Hz	NEW SURPLUS	*In Stock ready for Shipment

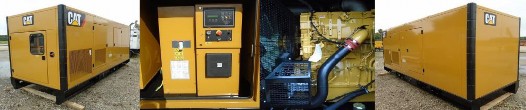

NEW Caterpillar Diesel Power Plant consisting of three (3) CAT 3508B Diesel Generator Sets. ENCLOSED and Special Insulation Package.
Three (3)  Units rated Rated 1100 kVA (880kW) Standby, 1000 kVA (800kW) Prime Power Each, 6600V, 3 Phase, 50 Hz, @ 1500 rpm, TOTAL FOR THREE UNITS OPERATING SYNCHRONIZED IN PARALLEL: 3,300 kVA (2,640 kW) Standby, 3,000 kVA (2,400 kW) Prime Power. Wall-mounted EMCP control panel, customer interface module – CIM suitable for remote interface, metric display, readout interface for engine and generator diagnostics, heavy duty “two-bearing” KATO generator (alternator) with 150% overspeed capability, class H generator insulation with tropicalization and antiabraison, digital voltage regulator, bus bar connections, interface connection for remote speed control, battery rack for battery storage, 24V electric starter, charging alternator, turbochargers, lube oil cooler, oil pan drain valve, lube oil and filters, fuel filters, fuel priming pump, air cleaners with service indicator, jacket water heater, radiator with blower fan, incl. coolant drain valve, safety guard, coolant level sensor, vibration isolators, durable CAT paint, 30’ generator set main enclosure with sound attenuation and special insulation, insulated access and service doors, special air inlet noise reducing louvers, large low noise muffler with accessories, + many other standard accessories.
Stock # 35-08-3-5851	0 Hours NEW	Model 2006	US $ 726,000.
Standard CAT Factory Warranty		New Equipment







2000 kW / 60 Hz	2000 kVA / 50 Hz	*Also available with Bi-Fuel Technology (optional)
Caterpillar  50 Hertz / 60 Hertz “Utility Power Module” Dual Voltage / Dual Frequency
Qty One (1) Remaining, Low Hour Caterpillar “Utility Power Module.” 50 Hertz / 60 Hertz. Caterpillar 3516B Engine with CAT SR4B two bearing 826 frame PM Generator. 60 Hertz Rating: 1825kw Prime Power, 277/480 Volt, 3 Phase, at 1800 RPM 50 Hertz Rating: 1600kw Prime Power, 230/400 Volt, 3 Phase, at 1500 RPM CAT EMCP 3.3 Digital Control panel, with CAT Utility Type Automatic Paralleling Switchgear in Separate Control Room, CAT ADEM III Load Share Electronic Governor, 24v Starter, 35a Alternator, Jacket Water Heater, 40’ Sound Attenuated Container, Fuel tank. This set have a unique and extensive list of standard features, please request from CAT specification sheet DTO20009290 for standard product features.
S/N: 1HZ03161 S/N: 1HZ03162 S/N: 1HZ03165 S/N: 1HZ03167	“12” Hours Since NEW “33” Hours Since NEW “27” Hours Since NEW “33” Hours Since NEW	Model 2006       Model 2006       Model 2006       Model 2006	$ 815,000 $ 815,000 –SOLD- $ 815,000 –SOLD- $ 815,000 –SOLD-
World Wide Warranty		Load tested / Serviced / Painted





2000 kW / 60 Hz	2000 kVA / 50 Hz	*Also available with Bi-Fuel Technology (optional)

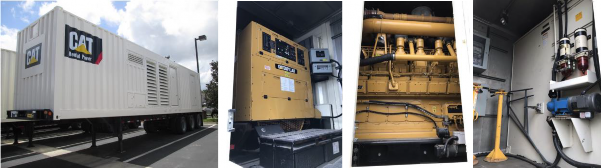

Caterpillar “XQ2000 Diesel Power Module”
Caterpillar XQ2000 Diesel Power Module, Sound Attenuated 40’ container, CAT 3516B engine, CAT SR4B generator, Premium CAT EMCP control panel, auto start / stop, engine safeties, auto paralleling CAT utility grade type switchgear, electrically operated circuit breaker, CAT electronic load share governor, 24V starter, 35Amp alternator, jacket water heater, 1250 gallon tank. ( *Chassis Optional)
S/N: 1HZ00440 /  Util Grade   S/N: 1HZ00441  / Util Grade   S/N: 1HZ00442 / Util Grade   S/N: 1HZ00447 /  Util Grade   S/N: 1HZ00461  / Util Grade   S/N: 7RN01645 / Util Grade   S/N: 7RN01514 / Util Conv   S/N: 1HZ01466 / Util Conv   S/N: 1HZ01468 / Util Grade   S/N: 1HZ01532 / Util Grade   S/N: 1HZ01566 / Util Grade   S/N: 1HZ00399*/  Util Grade   S/N: 1HZ01219*/ Util Conv   S/N: 7RN01705*/ Util Conv   S/N: 1HZ00838*/ Util Conv   S/N: 1HZ03053*/ Util Grade   S/N: 7RN01715*/Util Grade   S/N: 1HZ00345*/ Util Grade   S/N: 1HZ00858*/Util Grade   S/N: 7RN01403*/Util Conv   S/N: 1HZ00411*/Util Grade   S/N: 1HZ00413*/Util Grade   S/N: 1HZ00414 / Util Conv	212 Hours Since NEW 216 Hours Since NEW 233 Hours Since New 262 Hours Since NEW 276 Hours Since NEW 4148 Hours Since NEW 3815 Hours Since NEW “0” Hours Total Rebuilt “0” Hours Total Rebuilt “0” Hours Total Rebuilt “0” Hours Total Rebuilt 8,629 Hours Since NEW 7,759 Hours Since NEW 8,374 Hours Since NEW 8,227 Hours Since NEW 9,587 Hours Since NEW 14,479 Hours Since NEW 12,323 Hours Since NEW 11,938 Hours Since NEW 10,262 Hours Since NEW 10,466 Hours Since NEW 10,788 Hours Since NEW 12,788 Hours Since NEW	Model Year  2001   Model Year  2001 Model Year 2001  Model Year  2001   Model Year  2001   Model Year  2000   Model Year  2000  Model Year 2002   Model Year  2002   Model Year  2002   Model Year  2002   Model Year  2001   Model Year  2001
