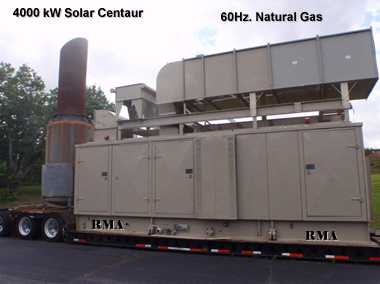

4000kW Solar Centaur Gas Turbine Generator Set for Sale
60Hz.  13.8kV Natural Gas

Milt Fyre   503-351-9898 or milt@rmaglobal.com

4000kW Solar Centaur Gas Turbine Generator set for sale. 60Hz. 13.8kV Centaur T4501 single shaft gas turbine engine, overhauled. 1800rpm reduction gearbox, overhauled. Ideal generator: 5000 kVA, 4000 kW, 0.8 PF, 1800 RPM, 3 Phase, Continuous Duty with Class "F" Insulation, Pneumatic Start System. Skid mounted indoor, sound attenuated gas turbine engine compartment. Woodward governor.   (Note: This unit can sustain a 4500kW continuous output due to a misting system and a new 5000kW Ideal Generator.)


Details:

1 off 4000 KW Solar Centaur Gas Turbine Generator Set is a skid mounted integrally connected, piped and wired unit featuring an indoor, sound attenuated gas turbine engine compartment.

The unit is presently equipped to burn natural gas fuel but can be converted to burn distillate fuel.

The unit is equipped with a Woodward governor; an air starting system consisting of electric motor driven compressors, air storage tanks and air expander; Donaldson self-cleaning air filtration system; inlet air fogging system; lubrication oil system; oil cooler; gauge panel; exhaust elbow, and a free standing switchgear for auto start, parallel and synchronizing operation.

A new turbine / generator control system is fitted, comprising - Allen Bradley Control logix plc, Woodward 2301D Governor and Bentley Nevada Vibration monitor.

Solar Centaur refurbished Turbo-generator package specifications:

  Centaur T4501 single shaft gas turbine engine, overhauled

  1800rpm reduction gearbox, overhauled

  5000 KVA Ideal generator, 4000 KW, 0.8 PF, 1800 RPM, 3 Phase, 60 Hz, 13.8KV, 6 Lead, Continuous Duty with Class F insolation.

  Pneumatic Start System

  Fire detection/suppression system, including

         New fire detection controller

         New (2) UVIR flame detectors

         CO2 bottles and rack

         Horn/strobe light assemblies on skid

  New (2) gas detectors and sensors

  New instrumentation (transmitters, RTDs) for the following:

         PCD

         Gas Fuel Pressure

         Lube Oil Header Pressure

         Lube Oil Header Temperature

         Air Inlet DP

         Enclosure temperature

  Woodward Governor Gas Control Valve.

  New turbine/generator control system including:

         Allen-Bradley ControlLogix PLC for turbine/generator sequencing and protection

         Woodward 2301D-GT governor

         Woodward DSLC generator control

         ABB Generator Protection Relay

         Basser SSR Voltage Regulator

  • Bentley Nevada BN1701 vibration monitor

         Hi-temperature velomitor for gas producer

         Accelerometer for gearbox

         Velomitors (2) for generator

         HMI, with the following content:

         Panel-mount PC

         Keyboard Drawer

         RSView32 software

         Digital generator meters (one for generator bus, one for running bus)

         Synchroscope

         Skid re-wired with new conduit

  480V Motor Control Center, containing starters for the following motors:

         Enclosure Vent Fan

         Lube Oil Cooler Fan motors (qty. 2)

         AC Lube Oil Pump

  Donaldson Self-cleaning combustion air filter

  Inlet silencer

  Exhaust Silencer

2 Lube Oil Coolers
