67MW Frame 6B Combined Cycle Power Plant for Sale. 60Hz. Dual Fuel. Operating Plant!

67MW GE Frame 6B Gas Turbine Generator Combined Cycle Plant for Sale
60Hz. 115kV Dual Fuel

Contact Milt Fyre 503-351-9898 or milt@rmaglobal.com

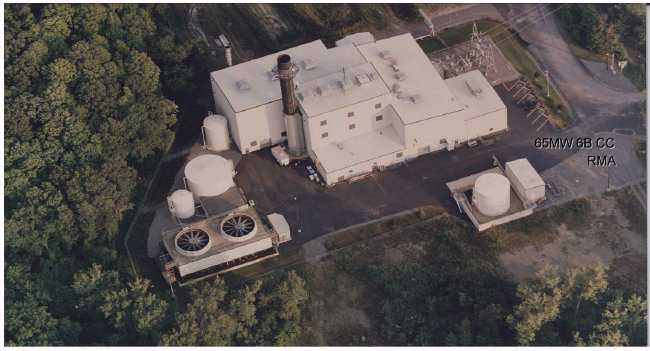

The plant is still operating and in good condition. Located in the US. The steam turbine has an extraction port that can be used to supply steam to a nearby third party. Can be purchased and operated in place in the NE US.

Equipment Details

In Service Year: 1992
CT and ST overhauled to current uprated technology in 2008
Bus Voltage: 115 kV
Frequency: 60 Hz
Equipment Type: GE Frame 6 Gas Turbine, GE direct drive
Steam Turbine, Duct Burners
Fuel (Primary/Secondary): Natural Gas / #2 Fuel Oil
Capacity from Duct Firing In Summer or Winter: 13 MW
Dependable Maximum Net Capacity - Summer: 64 MW
Dependable Maximum Net Capacity - Winter: 70.9 MW

Equivalent Forced Outage Rate on Demand - 2007: 0.11%
Reactive Power Capability -Estimated: 30 MVar
Ramp Rate after Start of Facility (i.e., synchronization with grid):
0.75 MW per minute (Hot Start)
0.40 MW per minute (Cold Start)
Combined Cycle:
Winter 8,750 Btu/kWh
Summer 8,850 Btu/kWh
Duct-Firing: 11,000 Btu/kWh
Fuel Oil Storage: 150,000 gallons
