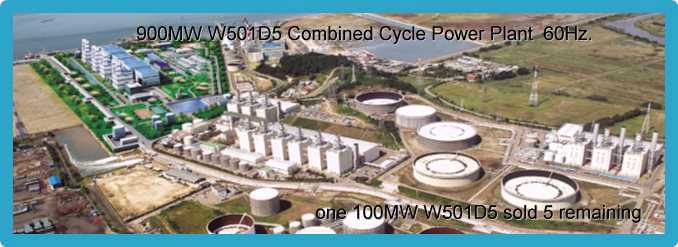

900MW Combined Cycle Power Plant for Sale
Westinghouse (Siemens) 501D5 60Hz. Fuel LNG 6x100MW GTG and 2x150MW STG
(note:  one 100MW 501D5 GTG has been sold and others can be sold seperately.)

Milt Fyre   503-351-9898 or milt@rmaglobal.com

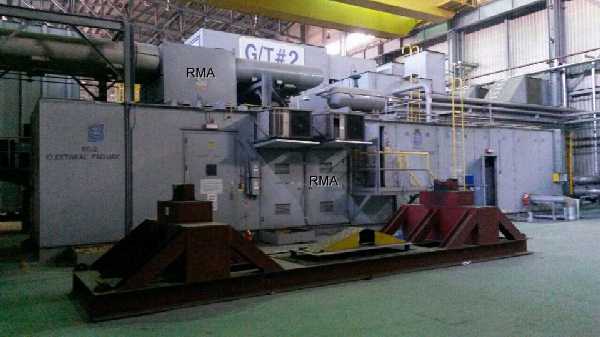

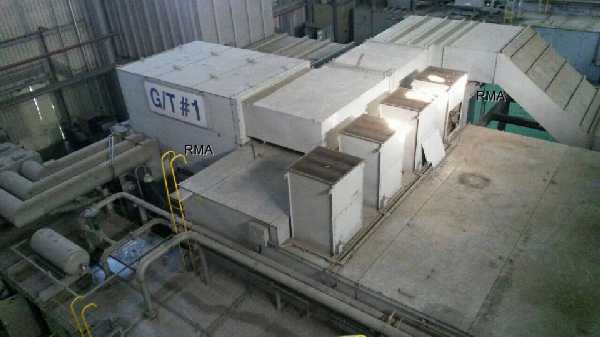

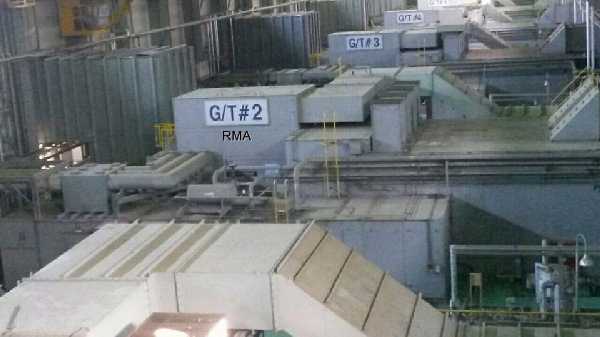

900MW Combined Cycle Power Plant for Sale 60Hz. Fuel LNG 6x100MW GTG and 2x150MW STG        FOB port including dismantling,   packaging and shipping to port and loading on vessel.   Commissioned in 1995 and closed in 2013.  The Gas Turbines are 100MW Westinghouse (Siemens) W501D5s, Axial Flow, 4 stage,  Speed Governor DEHC

100MW Westinghouse (Siemens) W501D5s, Axial Flow, 4 stage,  Speed Governor DEHC.   These GTG sets can be sold separately.

Starter System, Electric Motor, 1530 kW. Quantity 1 each   Combustor Can-Annular Quantity 14 each    Compressor Axial Flow Air Mass Flow

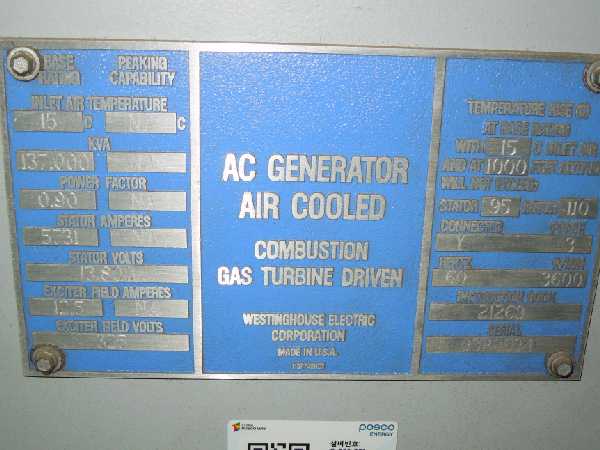

Generators are Westinghouse (Siemens) OAC(Open-Air-Cooled),    Rated Power 129(143) MW(MVA),   Power Factor/ short-circuit ratio 90%/0.695, Frequency 60Hz/2pole, 3600 RPM,
Rated Voltage/Current 13.8 kV/5731 A, Insulation Class : F,

Exciter 3600 RPM, PMG, Rated Voltage/Current 325 V/1006 A, Protection Devices 87G, 9GN, 40,32,46, 51V, 60,25, Neutral Grounding NGR, Bus Bar IPB(3phases), Rotation Direction CW(Viewed Form Exciter end)

Steam Turbines are Hitachi, Type: TCDF Reheat Condensing 23, Power Output : 150,000 kW,
Rotor Speed 3,600 RPM, Number of stage : HP 6 / IP 7 / LP 5,   Main Steam Pressure : 100.1 kg/cm,   Main Steam Inlet Temperature : 498.2 C,   Reheat Steam Inlet Pressure : 34.4 kg/cm,    Reheat Steam Inlet Temperature : 353.9 C,   Reheat Steam Outlet Pressure : 31.7 kg/cm,    Reheat Steam Outlet Temperature : 501.5 C,   Exhaust Pressure : 38 mm  Hg(a), Speed Governor :   Electro-Hydraulic Governor

Steam Turbine Generators are Hitachi,   Type: TFLH, Rated Power: 150MW,    Power Factor : 85%/0.58,    Frequency : 60Hz./2pole,    Speed : 3600 RPM,    Rated Voltage/Current 17 kV/6,521 A    Insulation Class : B,

Exciter Speed : 3600 RPM, Exciter Type : Rotary Rectifier, Rated Voltage/Current : 284 V/1,060 A, Protection Devices : 87G, 64G, 59F, 40F, 46F, 32, 21G, Neutral Grounding : Grounding Transformer, Bus Bar : IPB(3phase)

Super Heater, Max. Operating Pressure : 121kg/44?, Outlet Pressure : 91.9kg/29.5cm   Outlet Temperature : 484.4 C /303 C,    Re-Heater,    Max. Operating Pressure : 44 kg/cm
Max. Operating Temp. : 523.9 C,    Outlet Pressure : 29.5 kg/cm,    Re-heat Steam Flow : 137.7 ton/h,   Heating Surface (Evaporator, Super Heater, Re-Heater), 46,750m / 9,010m/ 4,800m    Safety Valve,    HP Drum : 2 EA,    IP Drum : 2 EA,    LP Drum : 2 EA,    Super Heater : HP: 3 EA, IP : 1 EA     Re-Heater : 2 EA, (Operation Period)

1) Steam Turbine #1  34998hours  (1997.7~2013.6)
2) Gas Turbine #1      37566hours  (1996.1~2013.6)
3) Gas Turbine #2      37013hours  (1996.1~2013.6)
4) Gas Turbine #3      39800hours  (1996.1~2013.6)
5) Steam Turbine #2  37723hours  (1997.12~2013.6)
6) Gas Turbine #4     41541hours  (1996.7~2013.6)
7) Gas Turbine #5     41819hours  (1996.7~2013.6)
8) Gas Turbine #6     40524hours  (1996.7~2013.6)

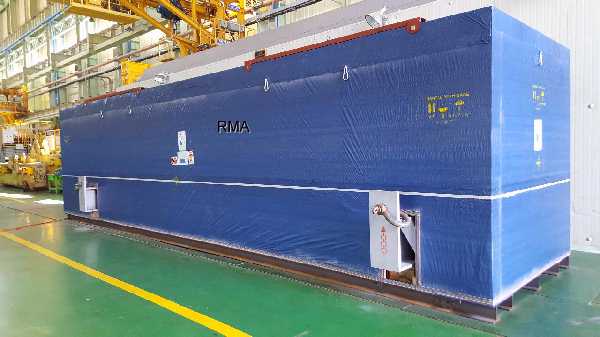

The plant will be dismantled in 1st quarter of 2016 and more details including photos and drawing will be furnished on request.

For more details and price contact    Milt Fyre   503-351-9898 or milt@rmaglobal.com
